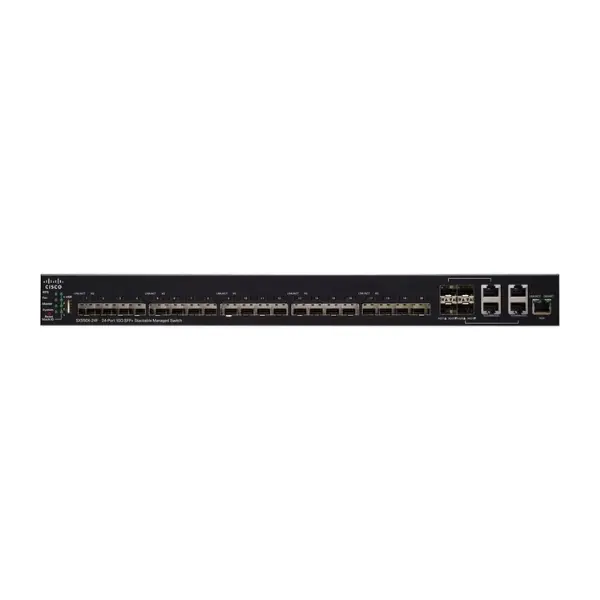

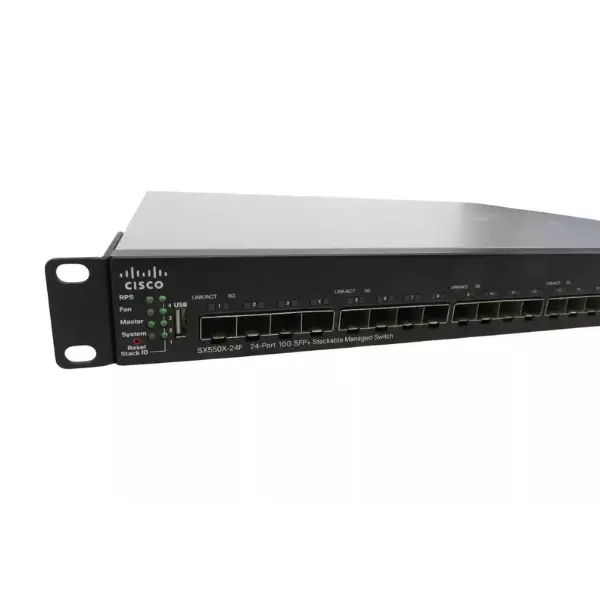

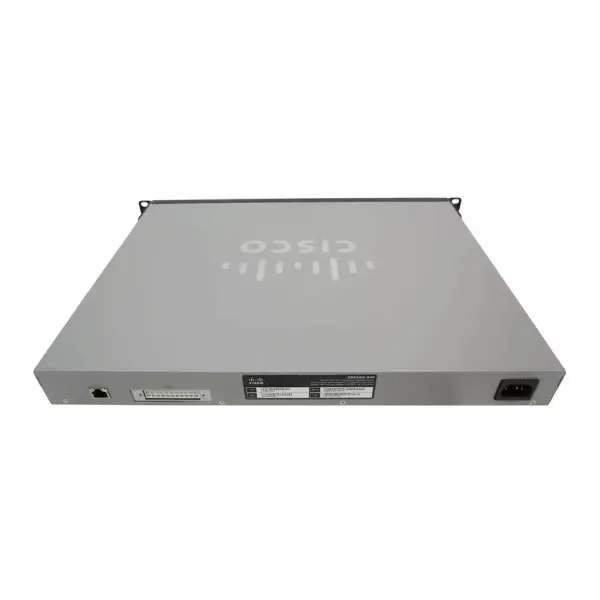

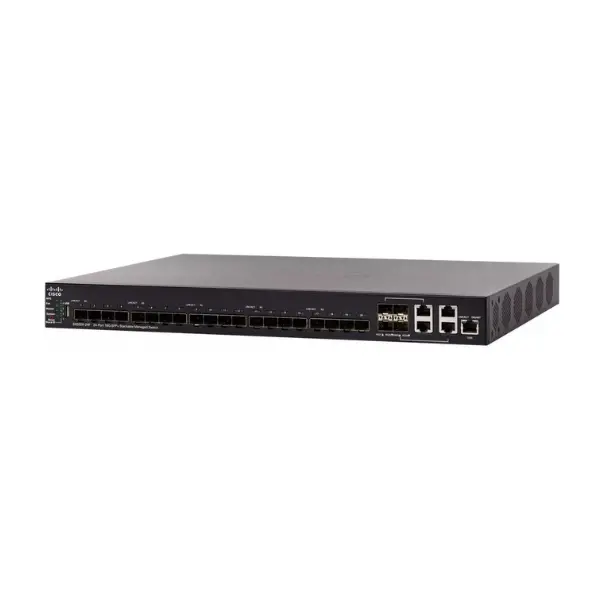

Cisco SX550X-24F Stackable Managed Switch, 24 Port Gigabit Ethernet with 4 Port SFP+

Cisco SX550X-24F - Description

Stackable Managed Switch, 24 Port Gigabit Ethernet with 4 Port SFP+

Powerful 10G Networking for Growing Businesses:

Cisco SX550X-24F Stackable Managed Switch is a next-generation solution designed for small to medium-sized businesses that demand high performance, security, and scalability. Featuring 20x 10 GE SFP+ ports and 4x combo 10 GE copper/SFP+ ports, along with a dedicated Gigabit Ethernet OOB management port, this switch delivers exceptional network speed and reliability. The true stacking capability simplifies network management by allowing multiple switches to be controlled as a single unit, ensuring seamless growth and easy troubleshooting.

High-Performance 10 Gigabit Ethernet Connectivity:

Breaking the traditional cost barriers of 10G networking, the Cisco SX550X-24F provides flexible options with both fiber and copper connectivity. Businesses can connect servers and storage devices easily using standard RJ-45 cables or 10G SFP+ fiber modules for a high-speed, efficient backbone network. With a switching capacity of 480 Gbps and a throughput of 240 mpps, the SX550X-24F ensures smooth data transfer, ideal for bandwidth-intensive applications like video conferencing, data backups, and cloud services.

Energy-Efficient Design and Reliable Hardware:

Built for efficiency, the Cisco SX550X-24F switch incorporates green technologies like Energy Efficient Ethernet (EEE) and Energy Detect, reducing power consumption without compromising performance. Power usage remains low at 54.9W on 110V and 55.5W on 220V, with a heat dissipation of only 189.37 BTU/hr. Featuring three fans plus one redundant fan for optimal cooling, the switch ensures high reliability and has an impressive MTBF (Mean Time Between Failures) of 433,149 hours at 50°C.

Advanced Management Features for Seamless Operation:

Managing your network is simplified with a dedicated RJ-45 console port, USB Type-A slot for easy firmware upgrades, and a dedicated OOB management port. Stack multiple switches using the stack ID LED indicators to create a single, logical network unit. The switch also supports RPS (Redundant Power Supply) for added reliability. All essential components, including the 1.3 GHz dual-core ARM CPU, 512 MB RAM, and 256 MB flash memory, deliver fast, stable operations for demanding network environments.

Built to Last: Rugged Design and Certified Quality:

Measuring 440 x 44 x 350 mm and weighing 4.70 kg, the Cisco SX550X-24F is compact yet robust, built to withstand challenging conditions. It is certified by UL, CSA, CE, and FCC standards for commercial environments. Operating within a wide temperature range of 0° to 50°C and humidity levels of 10% to 90%, it ensures durability and consistent performance even under heavy loads
