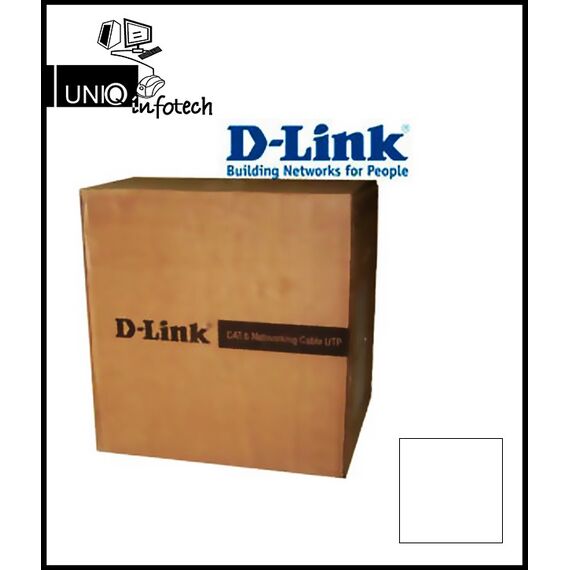

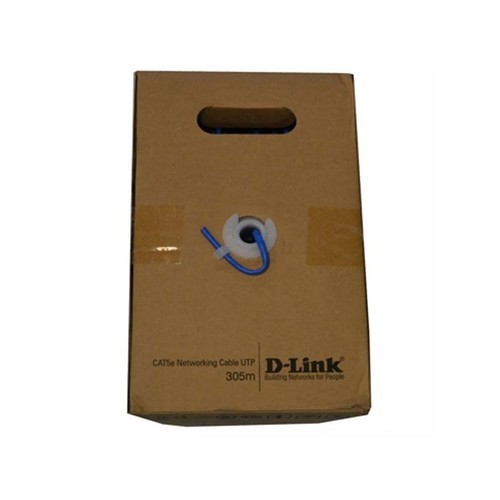

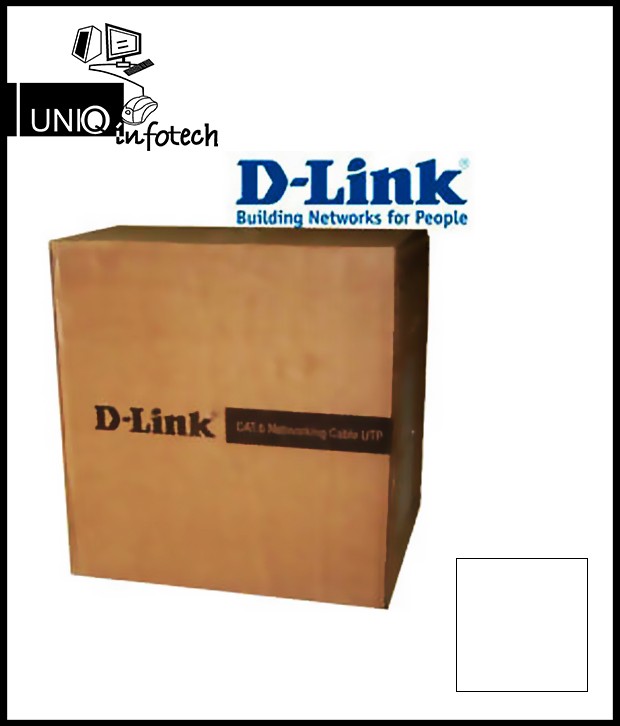

D-link Cat5E 24AWG UTP Cable Rolls 305M / NCB-5EUGRYR-305

Extend Your Lines For The Better With - D-link Cat5E 24AWG UTP Cable Rolls 305M / NCB-5EUGRYR-305

D-Hyperlink strong cables are the perfect twisted-pair cables out there for transmitting knowledge over native space Networks (LANs). These cables exceed efficiency necessities specified by TIA/EIA568C.2 and IEC 60603-7-4 requirements.

As streaming video and multimedia over LAN are gaining reputation, customers demand sooner knowledge transmission and diminished ready time. D-Hyperlink cables are perfect for easy, cost-effective and high-speed transmission efficiency. They help a better signal-to-noise ratio, offering higher reliability for present functions and better knowledge charges for future functions.

SPECIFICATIONS

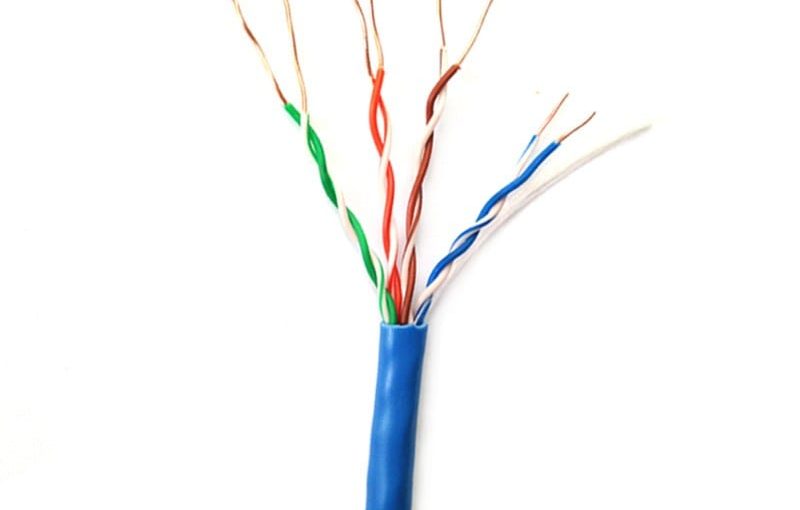

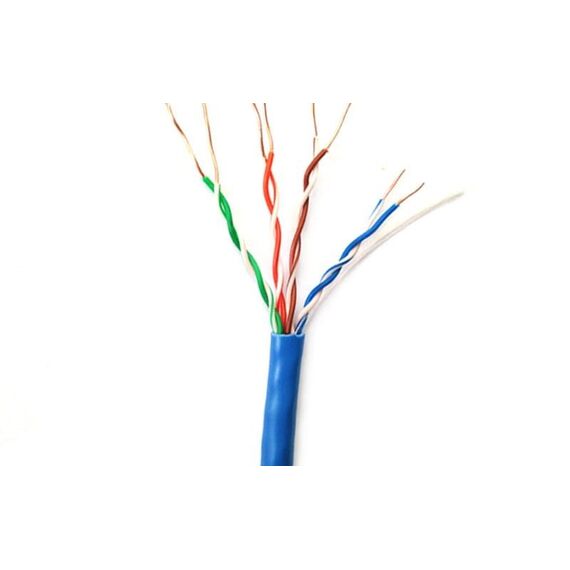

-Four Pairs Unshielded Twisted Pair (UTP) Cable
-Conductor Metallic: Strong Bare Copper
-Coloration Code: Blue/ Gray
-Conductor Diameter: 0.5mm Nominal, 24 AWG
-Insulation Diameter: 0.860 Nominal, Insulation Materials: HD-PE
-Jacket Materials: PVC UL94V-0
-Cable Diameter: 5.0mm nominal

APPROVAL / CERTIFICATION

-Verified compliant with TIA/EIA-568C.2 requirements by ETL
-CUL listed
-RoHs

TECHNICAL DETAILS

-Mutual Capacitance: 5.6nF/100m nominal
-Attribute Impedance: 100Ω±15%
-Nominal Velocity of Propagation: 69%
-Conductor Resistance: < 9.80Ω/100m
-Resistance Unbalance: 5 % Max
-Capacitance Unbalance: 330pF/100m
-Delay Skew: < 45nS
-Bending Radius: < Four X Cable Diameter (mm) at –20°C ± 1°C
-Pulling Power: 100 N
-Temperature Range: -20°to +70°C
