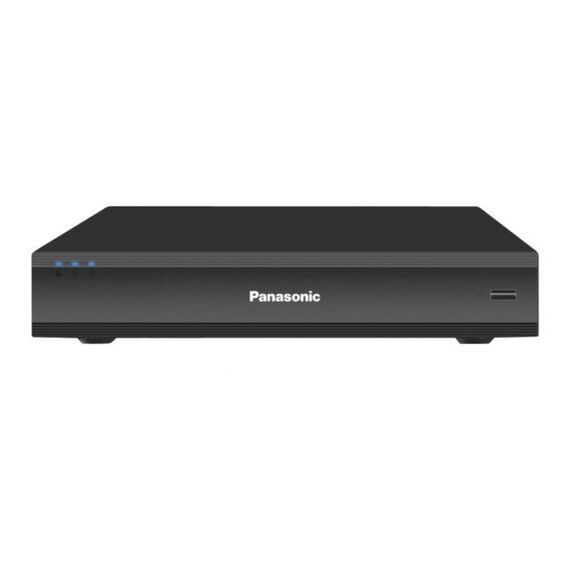

DVR PANASONIC PI-HL1116K 16CH

Model

PI-HL1116K

Processor

Embedded processor

Operating System

Embedded LINUX

Video Input

16 channel, BNC

Video Standard Analog

NTSC/PAL

Video Standard Pro-HD+

1080p/720P Pro-HD+ Camera

Video Standard IP

8+2 up to 5MP

Audio Input

1 channel, RCA

Audio Output

1 channel, RCA

Two-way Talk

Reuse audio input/output channel 1

Display Interface

1 HDMI, 1 VGA

Resolution

1920*1080, 1280*1024, 1280*720, 1024*768

Display Split

1/8/9

Privacy Masking

4 rectangular zones(each camra)

OSD

Cemera title, Time,Video loss, Camera lock,

Video/Audio Compression

H.264 / G.711

Record Rate

Main Stream: 1*11080N/720P

Bit Rate

1~4096kb/s

Record Mode

Manual, Schedule(Regular(Continuous), MD), Stop

Dimensions

260mmx220mmx40mm

Weight

0.75Kg
