Intel Core™ i5-10400F Processor - Msi H510M-A Pro Motherboard - crucial 8GB 3200GHz
Ballistix Ram - Team Group 256GB SSD M.2 NVME - EVGA GeForce RTX 2060 KO Ultra
Gaming 6GB GDDR6 Dual Fans - Redragon GC-618 Gaming Case + PSU 600W

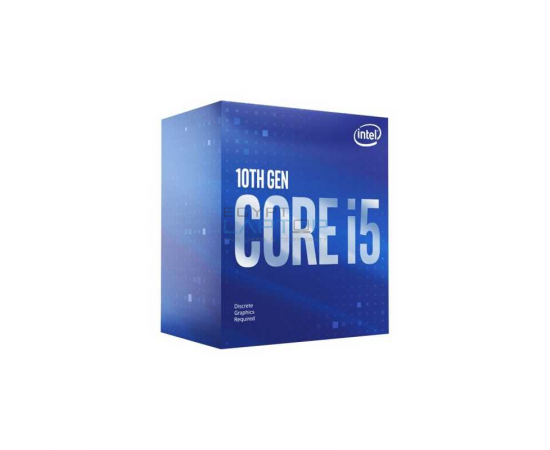

Intel Core™ i5-10400F Processor:
Product Collection10th Generation Intel® Core™ i5 Processor.
Recommended Customer Price$155.00 - $157.00
# of Cores6
# of Threads12
Processor Base Frequency2.90 GHz
Max Turbo Frequency4.30 GHz
Cache12 MB Intel® Smart Cache
Bus Speed8 GT/s
Intel® Turbo Boost Technology 2.0 Frequency‡4.30 GHz
>span class="value" data-key="MaxTDP">65 W
Embedded Options AvailableNo
Max Memory Size (dependent on memory type)128 GB
Max # of Memory Channels2
Max Memory Bandwidth41.6 GB/s
ECC Memory Supported ‡No
PCI Express Revision3.0
PCI Express Configurations ‡Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes16
Max CPU Configuration1
>span class="value" data-key="ThermalSolutionSpecification">PCG 2015C
Package Size37.5mm x 37.5mm
Intel® Optane™ Memory Supported ‡Yes
Intel® Thermal Velocity BoostNo
Intel® Turbo Boost Max Technology 3.0 ‡No
Intel® Turbo Boost Technology ‡2.0
Intel vPro® Platform Eligibility ‡No
Intel® Hyper-Threading Technology ‡Yes
Intel® Virtualization Technology (VT-x) ‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® VT-x with Extended Page Tables (EPT) ‡Yes
Intel® Transactional Synchronization ExtensionsNo
Intel® 64 ‡Yes
>span class="value" data-key="InstructionSet">64-bit
>span class="value" data-key="InstructionSetExtensions">Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Enhanced Intel SpeedStep® TechnologyYes
>span class="value" data-key="ThermalMonitoring2Indicator">Yes
Intel® Identity Protection Technology ‡Yes
Intel® Stable Image Platform Program (SIPP)No
Security & Reliability
Intel® AES New InstructionsYes
Intel® Software Guard Extensions (Intel® SGX)Yes with Intel® ME
Intel® OS GuardYes
Intel® Trusted Execution Technology ‡No
Execute Disable Bit ‡Yes
Intel® Boot GuardYes
Msi H510M-A Pro Motherboard:
Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 3200(Max) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance. DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability. Lightning Fast Experience: PCIe 4.0 Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
User Friendly Design:
MSI Motherboards provide users with a variety of ergonomic and intelligent designs, and countless system adjustments and troubleshooting tools to take your system to new heights and satisfy even the most demanding configuration tools. This makes it very easy to install the motherboard without any problems.
FROZR AI Cooling:
Determines CPU and GPU temperatures and adjusts system value using MSI AI Engine.
Fully controllable In BIOS And Software:
MSI Motherboards allow you to control the speed and temperature of all system and CPU fans. Total Fan Control allows you to check the main features of the system in a simple graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which automatically adjusts fan speed.
EZ Debug LED:
Am I in trouble? Built-in LED indicators for major components indicate where the problem came from, so you know exactly where you want it to work again.
11th GEN Core Processors Support Extreme Stability & Compatibility Testing For Memory WINDOWS 10 Certified
Fortify Your System With PCI-E Steel Armor:
MSI PCI Express Steel Armored Slots have additional sales points to support the weight of heavy graphics cards on the motherboard. When each game feature is needed, Steel Armor protects the access point from electromagnetic interference.
Ultimate Motherboard Protection:
Double ESD protection doubles the ground cover around the mounting holes, preventing damage to the motherboard from static electricity.
The most important thing about DIY is measurement. MSI PRO series motherboards have great potential to meet the needs of consumers. Stable LAN, fast storage, USB data transfer speed and other expandable links are ready to expand your flexibility.
Low Latency Gaming LAN Powered By Intel:
Stay connected to Intel LAN, optimized for stable Internet bandwidth and competitive games online.
Optimize Network For Lower Latency:
The MSI LAN Manager automatically classifies slow-paced applications and prioritizes delivering the best Internet experience with minimal delay.
Fast And Future-Ready Storage:
MSI PRO series motherboards support the latest storage standards, allowing users to connect to any super-fast storage device. High efficiency makes your job easier.
USB 3.2 GEN 1:
Transfer large amounts of data, music, and movies via USB. USB 3.2 Gen 1 ports are located on the front and back panels and offer a variety of options for connecting USB 3.2 Gen 1 devices.
MSI PRO series motherboards are designed for any professional workflow. Increase the enjoyment of listening and enjoy superior sound quality. In addition, if you have years of experience in building easy-to-use performance enhancement tools, you will only get high quality apps at your fingertips. General features allow you to customize your system for maximum reliability.
Lightning GEN 4 PCI-E:
MSI Lightning Gen 4 PCI-E is the latest and fastest PCI-E data transfer solution with 64 Gb / s bandwidth, which is more than double the previous generation. PCIe 4.0 supports back and forth compatibility with old and new specifications. With metal armor construction, your motherboard can support the weight of heavy graphics cards.
Extreme Stability & Compatibility Testing:
MSI scans the most popular brands' memory to make sure your system is stable no matter what. Memory module Our partners include brands such as Corsair, Crucial, Kingston, G.Skill and others to improve memory modules and configurations.
Core enhancement technology combines MSI premium design with optimized power consumption for faster and more seamless streaming to the CPU. It creates not only a multi-core processor but also a convenient way to shut down your processor.
DEDICATED HIGH DEFINITION AUDIO PROCESSOR: Make sure you enjoy the purest sound quality in both stereo and surround sound. HIGH QUALITY AUDIO CAPACITORS: Studio-level headphones provide exceptional acoustics and authenticity for high quality audio. HD AUDIO CONNECTORS: Increase your volume by delivering a clear digital signal.
Isolated Audio Signal:
ISOLATED AUDIO DESIGN: Like a special sound card, sound units and circuits are housed in a motherboard enclosure and are electrically insulated. SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS: Using different layers in the PCB ensures the same clear sound quality for left and right audio channels.
It protects your ears by eliminating annoying noises when you plug in your amplifier or turn on your computer.
BIOS And Software:
MSI CENTER: The new MSI Center integrates MSI software tools from MSI into a single application. Manage advanced motherboard features and get endless opportunities.
Click BIOS 5:
CREATOR GENIE: Find out more about the easy-to-use BIOS. Customize your motherboard for game performance, efficiency, or world-class finish! XMP: Increase your processor quickly by pushing a button to increase performance. M-FLASH: Select from the predefined XMP profiles and automatically erase the corresponding DDR memory. HARDWARE MONITOR: Simply turn on or update your BIOS in minutes with CMOS Setup Utility. Quickly access critical hardware information in real time, including temperature, memory size, clock speed and voltage. MEMORY TRY IT: Get the best speed from your system memory and get more performance. SEARCH & FAVORITES: The Always and Favorite Search option at the top right will quickly guide you through the BIOS menu.
RESIZABLE BAR (RE-SIZE BAR):
is an advanced PCI Express feature that allows the CPU to access the entire GPU framework at once and improve performance.
All MSI PRO series motherboards have a BIOS security feature that protects all your personal files in the workplace and in everyday life. Secure Boot: Secure Boot is a security measure that only allows a device to be installed with trusted software. When the computer starts, it verifies the signature of all part of the boot program, including UEFI firmware drivers, EFI applications and the operating system. As long as the signatures are correct, the computer will boot.
crucial 8GB 3200GHz Ballistix Ram:
Anodized aluminum heat spreader available in black, white, or red. Low-profile form factor is ideal for smaller or space-limited rigs.
Bold RGB Effects
Customize your rig’s color scheme with 16 RGB LEDs in 8 zones on each Crucial Ballistix RGB module.
Ideal for laptop gamers
Crucial Ballistix SODIMM memory is ideal for laptop gamers and performance enthusiasts. Aluminum heat spreader included for thermal management in a compact space.
Redefine Game Performance
XMP 2.0 support and pre-defined profiles let you overclock2 to extract maximum performance. Select the JEDEC default profile for standard performance.
We work with AMD and Intel, as well as motherboard designers and system builders, to ensure our memory is optimized for high performance.
As the manufacturer of memory components, we do more than bin parts. We optimize performance at the die level.
Team Group 256GB SSD M.2 NVME:
Next generation high-speed M.2 SSD
TEAMGROUP Solid State drive TM8PS5 is the next generation high-speed M.2 SSD (also known as the Next Generation Form Factor, NGFF). It provides mobile computing devices an excellent data saving performance with ultra-compact size and lightweight.
Easily enhance the performance and expand the capacity
The TEAM M.2 SSD is exactly designed according to the M.2 specification. TM8PS5 adopt a new generation of SATA III 6Gb/s transmission interface which has a stunning data transfer performance and compatibility.
Intel Smart Response Technology
TEAMGROUP’s M.2 SSD supports Intel® Smart Response Technology (ISRT), which allows you to configure your computer system with an SSD used as cache memory between the hard disk drive and system memory. This provides the advantage of having a hard disk drive for maximum storage capacity while delivering a SSD-like overall system performance experience.
Teamgroup M.2 SSD ISRT works by monitoring which programs and files you access most frequently and stores them on the SSD. As a result, application launch speed and overall system responsiveness are significantly improved, while the large capacity of the hard drive is free to store all your other programs and files. In this configuration, only one drive letter is displayed; no additional drive letter is required for the SSD used as cache.
EVGA GeForce RTX 2060 KO Ultra Gaming 6GB GDDR6 Dual Fans:
Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos
HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
The latest standards in DisplayPort and HDMI interfaces.
All-Metal Backplate, Pre-Installed
Real-Time Ray Tracing
When it comes to next-gen gaming, it’s all about realism. GeForce RTX is light years ahead of other cards, delivering truly unique real-time ray tracing technologies for cutting-edge, hyper-realistic graphics.
NVIDIA® GeForce Experience
The essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
NVIDIA® G-SYNC™ Compatible
Get smooth, tear-free gameplay at refresh rates up to 240 Hz, plus HDR, and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.
Game Ready Drivers
Get the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
NVIDIA® GPU Boost™
Built for EVGA Precision X1
Microsoft® DirectX® 12 Ultimate, Vulkan, OpenGL 4.6
DirectX 12 Ultimate is the newest version of the API and new gold standard for the next-generation of games. DirectX 12 Ultimate takes games to a whole new level of realism with support for ray tracing, mesh shaders, variable rate shading, and sampler feedback.
Supports NVIDIA NVENC Turing Encoder
The NVIDIA Encoder (NVENC) will revolutionize the way you stream. NVENC is an independent section of your GeForce GPU used to encode video, lifting the strain from your CPU. This frees up the system to run your games and tackle other resource-intensive tasks so you can focus on what’s truly important - delivering a show-stopping broadcast.
Redragon GC-618 Gaming Case + PSU 600W:
Chassis size：380*200*430mmCarton size：505*263*475mmMaterial：0.5mm SPCC 3.5'HDD*1 , 2.5'SSD*2 , PCI slots*71*USB3.0+2*USB1.0+HD AudioFront panel is 4mm tempered glassLeft panel is 4mm tempered glassPackage:PE bag+polyfoam+brown carton boxVGA length:350mm maxCPU cooler height:160mm maxFan optional:1)Front:3*12cm cooling fan2)Rear:1*12cm cooling fan3)Top:2*12cm cooling fanPSU:ATX,600W,black coating,I/O switch,220V~240V，50Hz,12cm black fan&black fan grille，20+4PIN,P8(P4+P4),P(6+2)*2,4PIN*2+SATA*4,1.5m European power cordPSU with OVP,OCP,SCP,OLP,LVP,LP protectionFan：Single ring 5 colors rainbow fanfan size:120*120*25mmFan connector：4PINWith fan label.
