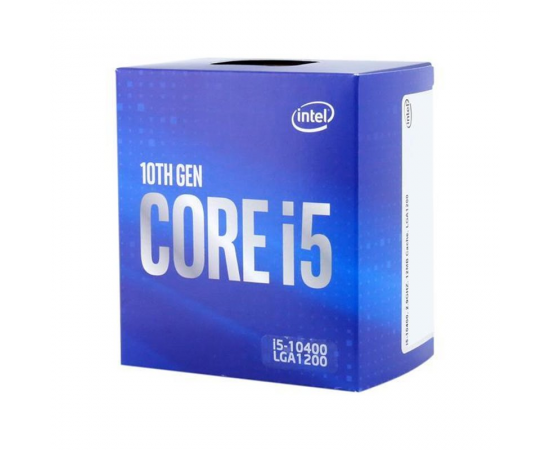

Intel® Core™ i5-10400 Processor

SH-3092020-i510400
3,410 EGP
Out of stock
Reward points: 1705 points
Call Us
Chat Us With Whatsapp
Delivery
Payment options
Brand :
Intel
CPU ( Computer Components )
CPU PC
Intel Core I5
PROCESSORS TYPE
DeskTop
Model Name ( components )
Intel Core i5-10400
CPU SOCKET TYPE
LGA1151
# OF CORES
6
# OF THREADS
12
OPERATING FREQUENCY
2.90 GHz
MAX TURBO FREQUENCY
4.30 GHz
L3 CACHE
12 MB
INTEGRATED GRAPHICS
Intel UHD Graphics 630
Find similar

Essentials

  • Vertical SegmentDesktop
  • Processor Numberi5-10400
  • StatusLaunched
  • Launch DateQ2'20
  • Lithography14 nm
  • Use ConditionsPC/Client/Tablet

CPU Specifications
    • # of Cores6
    • # of Threads12
    • Processor Base Frequency2.90 GHz
    • Max Turbo Frequency4.30 GHz
    • Cache12 MB Intel® Smart Cache
    • Bus Speed8 GT/s
    • Intel® Turbo Boost Technology 2.0 Frequency4.30 GHz

    Supplemental Information

    • Embedded Options AvailableNo
    • DatasheetView now

    Memory Specifications

    • Max Memory Size (dependent on memory type)128 GB
    • Memory TypesDDR4-2666
    • Max # of Memory Channels2
    • Max Memory Bandwidth41.6 GB/s
    • ECC Memory Supported No

    Processor Graphics

    • Processor Graphics Intel® UHD Graphics 630
    • Graphics Base Frequency350 MHz
    • Graphics Max Dynamic Frequency1.10 GHz
    • Graphics Video Max Memory64 GB
    • 4K SupportYes, at 60Hz
    • Max Resolution (HDMI)4096 x 2160@30Hz
    • Max Resolution (DP)‡4096 x 2304@60Hz
    • Max Resolution (eDP - Integrated Flat Panel)‡4096 x 2304@60Hz
    • DirectX* Support12
    • OpenGL* Support4.5
    • Intel® Quick Sync VideoYes
    • Intel® InTru™ 3D TechnologyYes
    • Intel® Clear Video HD TechnologyYes
    • Intel® Clear Video TechnologyYes
    • # of Displays Supported 3
    • Device ID0x9BC8 / 0x9BC5

    Expansion Options

    • Scalability1S Only
    • PCI Express Revision3.0
    • PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4
    • Max # of PCI Express Lanes16

    Package Specifications

    • Sockets SupportedFCLGA1200
    • Max CPU Configuration1
    • TJUNCTION100°C
    • Package Size37.5mm x 37.5mm

    Advanced Technologies

    • Intel® Optane™ Memory Supported Yes
    • Intel® Thermal Velocity BoostNo
    • Intel® Turbo Boost Max Technology 3.0 No
    • Intel® Turbo Boost Technology 2.0
    • Intel vPro® Platform Eligibility No
    • Intel® Hyper-Threading Technology Yes
    • Intel® Virtualization Technology (VT-x) Yes
    • Intel® Virtualization Technology for Directed I/O (VT-d) Yes
    • Intel® VT-x with Extended Page Tables (EPT) Yes
    • Intel® Transactional Synchronization ExtensionsNo
    • Intel® 64 Yes
    • Idle StatesYes
    • Enhanced Intel SpeedStep® TechnologyYes
    • Intel® Identity Protection Technology Yes
    • Intel® Stable Image Platform Program (SIPP)No

    Security & Reliability

    • Intel® AES New InstructionsYes
    • Secure KeyYes
    • Intel® Software Guard Extensions (Intel® SGX)Yes with Intel® ME
    • Intel® OS GuardYes
    • Intel® Trusted Execution Technology No
    • Execute Disable Bit Yes
    • Intel® Boot GuardYes
