SPECIFICATIONS

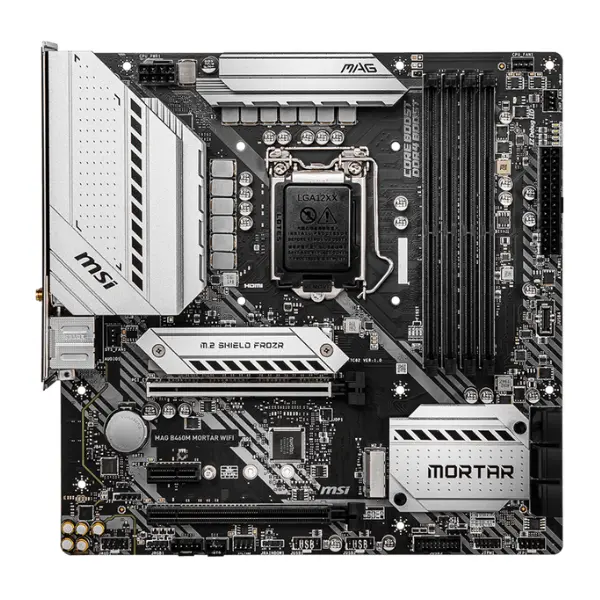

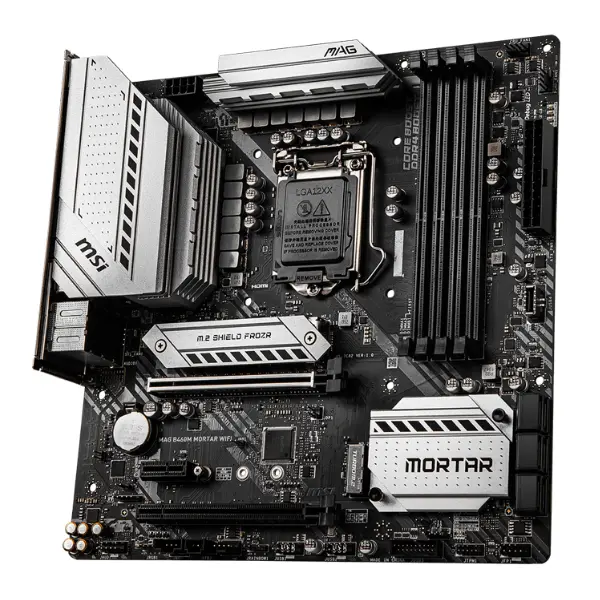

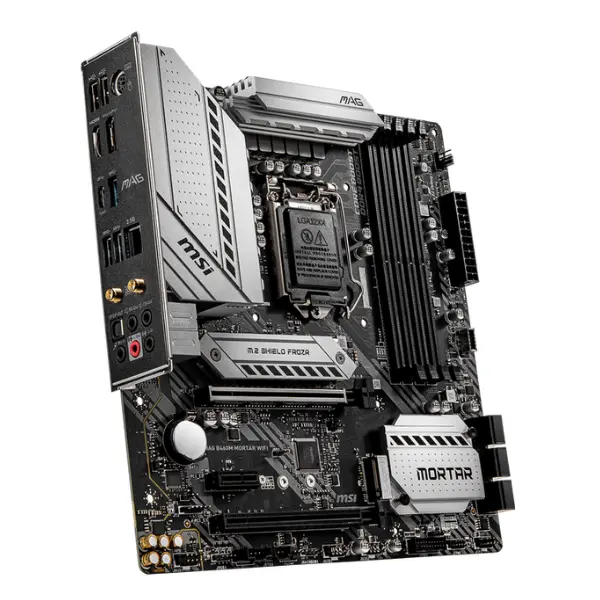

Model Name MAG B460M MORTAR
CPU Support Supports 10th Gen Intel®
Core™ and Pentium®
Gold /
Celeron®
processors
CPU Socket LGA 1200
Chipset Intel®
B460 Chipset
Graphics
Interface
2x PCI-E 3.0 x16 slots
Support 2-way AMD®
CrossFire™ Technology
Display Interface DisplayPort, HDMI – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-2933Mhz (Max.)
Expansion Slots 1x PCI-E 3.0 x1 slot
Storage 2x M.2 slots, 6x SATA 6Gb/s
SATA RAID RAID 0, 1, 5, 10 – Available on ports SATA1 to SATA6
USB ports 7x USB 3.2 Gen 1 5Gbps ports (2 Type-C + 5 Type-A) + 6x
USB 2.0 ports
LAN Realtek®
8125B 2.5G LAN
WiFi/Bluetooth Intel®
WiFi 6 AX200, Bluetooth 5.1
Audio 8-Channel(7.1) HD Audio with Audio Boost (ALC1200)
