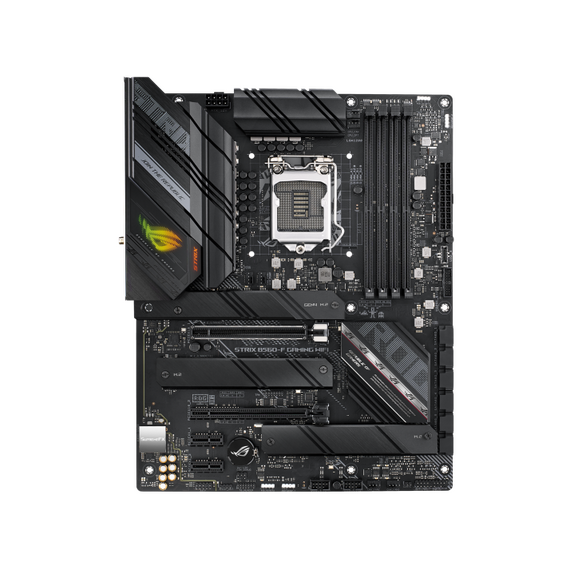

Asus Rog Strix B560-F Gaming Wifi Motherboard

4,200 EGP
Out of stock
Reward points: 2100 points

Asus, Rog Strix, B560-F, Gaming, Wifi, Motherboard, Intel® B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Intel® 2.5 Gb Ethernet, three M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync RGB lighting.

  • أحصل علي عرض سعر لشركتك
  • Call Us
  • Chat Us With Whatsapp
  • Payment options
  • احصل على عرض أسعار لمؤسستك يشمل جميع المنتجات أو الخدمات او الحلول التي تحتاجها، وسيتم الرد عليك في اقرب وقت

    أضغط هنا

  • You can contact us on the hotline all days of the week from 10 am to 10 pm
    Call Us 15240
  • You can contact us via WhatsApp

    Click Here

    • Cash on delivery
    • Visa and Mastercard
    • Mobile Wallets
Brand:
ASUS
Motherboard
CPU SOCKET ( MOTHERBOARD )
LGA1200
Motherboard Chipset
B560-F

Asus, Rog Strix, B560-F, Gaming, Wifi, Motherboard,

Intel® B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Intel® 2.5 Gb Ethernet, three M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync RGB lighting.

  • Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™, 10th Gen Intel Core, Pentium® Gold and Celeron® processors
  • Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Smooth Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, three M.2 slots and USB 3.2 Gen 2x2 USB Type-C®
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
  • Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS® Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard

ROG STRIX B560-F GAMING WIFI

CPU

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

B560

Memory

Max Memory Size:128GB

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x DisplayPort 1.4
1 x HDMI™ 1.4

* Graphics specifications may vary between CPU types.

**Only Intel® 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update.

*** Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Expansion Slots

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)

- Intel® 11th processors support PCIe 4.0 x16 mode

- Intel®10th processors support PCIe 3.0 x16 mode

Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots

* The PCIEX16_2 shares bandwidth with the M.2_2. When M.2_2 runs x4 mode, PCIEX16_2 will be disabled.

Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.

Intel® B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)**

6 x SATA 6Gb/s ports

* The M.2_2 share bandwidth with PCIEX16_2. When PCIEX16_2 runs x4 mode, M.2_2 can’t run PCIE mode (when M.2_2 runs at SATA mode, SATA6G_1 will be disabled)

** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

Wireless & Bluetooth

Intel® Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.0 or later

USB

Rear USB:Total 9 ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

2 x USB 3.2 Gen 2 port (2 x Type-A)

2 x USB 3.2 Gen 1 port (2 x Type-A)

4 x USB 2.0 port(s) (3 x Type-A, 1 x audio USB Type-C®)

Front USB:Total 7 ports

1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*


Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear audio USB Type-C® port

- Premium Japanese audio capacitors

- Audio cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 port(s) (2 x Type-A)

2 x USB 3.2 Gen 1 port(s) (2 x Type-A)

4 x USB 2.0 port(s) (3 x Type-A, 1 x audio USB Type-C®)

1 x HDMI™ port

1 x DisplayPort

1 x ASUS Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet

5 x Audio jacks

1 x BIOS FlashBack™ button

Special Features

Y

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- AURA RGB header(s)

- Addressable Gen 2 RGB header(s)

Software Features

ROG Exclusive Software

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Two-Way AI Noise Cancelation

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert 4

- EZ update

MyAsus

WinRAR

DAEMON Tools

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

4 x SATA 6Gb/s cables

1 x ROG audio USB Type-C® cable

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Q-Latch package

2 x M.2 Rubber Packages

1 x ROG key chain

1 x ROG STRIX stickers

1 x ROG STRIX thank you card

Installation Media

1 x Support DVD

Documentation

1 x User manual

Operating System

Windows® 10 64-bit

Form Factor

ATX 30.5cm x 24.4cm
