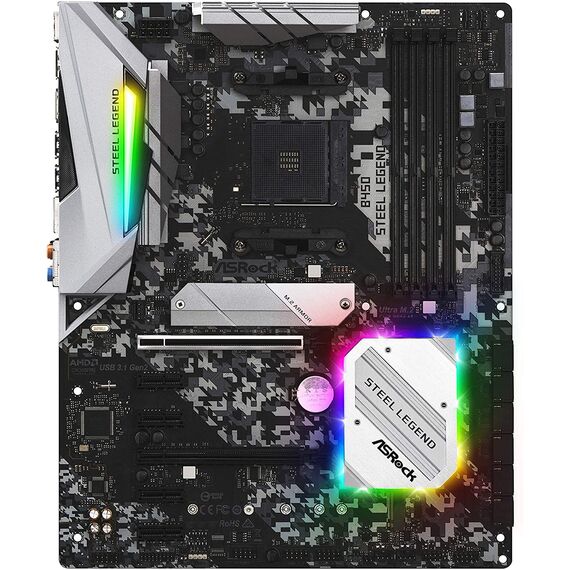

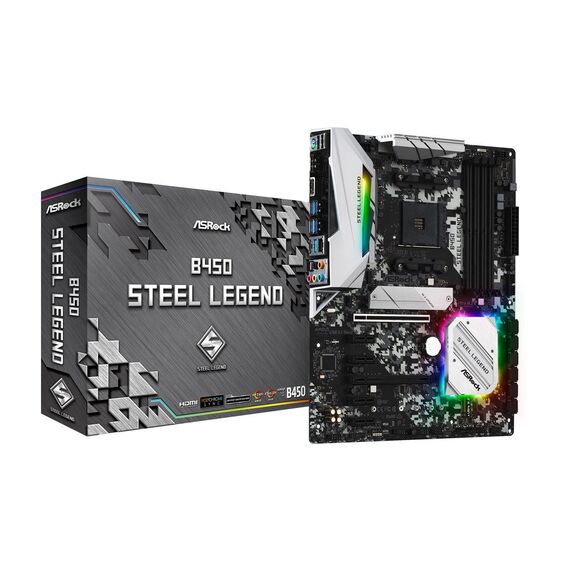

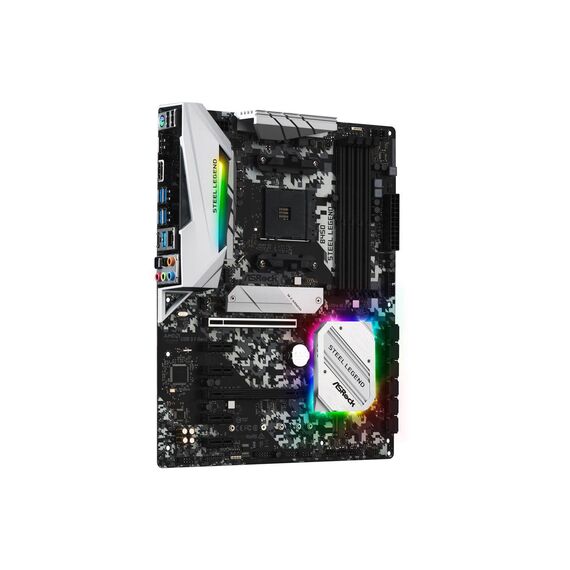

ASRock B450 Steel Legend Motherboard
Powered by AMD B450 chipset, this motherboard supports up to 2nd generation AMD Ryzen processors of up to eight cores. This board looks great, featuring a camouflage-themed PCB, aggressive-looking heatsinks, and has onboard LED lighting that supports full spectrum of RGB colors with various effects, and can synchronize with other devices enabled with ASRock Polychrome. More than a pretty face, this B450 Steel Legend has quad DIMM slots supporting DDR4 3533+ (OC), two PCI-E x16 slots ready for AMD Quad CrossFireX, two M.2 slots, and two USB 3.1 Gen2 ports (rear Type-A + Type-C), so you have all essentials needed to build your new powerhouse. Moreover, this board is also constructed to be tough, with Super Alloy components, Full Spike Protection, and a PCI-E x16 slot covered by steel plate for better strength and less EMI.
If you're looking for a solid, budget-friendly yet feature-rich foundation for your dream system, look no further than ASRock B450 Steel Legend.
- AMD AM4 Socket
- Supports DDR4 3533+ (OC)
- 2x PCIe 3.0 x16, 4x PCIe 2.0 x1
- AMD Quad CrossFireX™
- Graphics Output: DisplayPort and HDMI
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
- 6x SATA3, 1x Ultra M.2 (PCIe Gen3 x4), 1x M.2 (PCIe Gen3 x2 and SATA3)
- 2x USB 3.1 Gen2 (Rear Type-A + C)
- 6x USB 3.1 Gen1 (2 Front and 4 Rear)
- Realtek Gigabit LAN
- Ultra USB Power
- 2x USB 3.1 Gen2 10Gbps
- Gold Audio Jacks
- Nichicon Fine Gold Series Audio Caps
- AMD AM4 Socket Supports 105W Water Cooling Digi Power Premium 60A Power Choke Nichicon 12K Black Caps
- Dual M.2 Sockets
- PCI-E Steel Slot
- Built-in Addressable LED ARGB Header RGB Header
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around the most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance, these motherboards fulfill every task with style!
RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB
Steel Legend motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers highly comprehensive control to smoothly utilize the built-in RGB LEDs or connected LED strips, CPU fans, coolers, chassis and any other compatible RGB devices. Devices can be synchronized across the Polychrome RGB Sync-certified line of accessories as well.
The addressable RGB LED header supports a WS2812B addressable RGB LED strip (5V/Data/GND) with a maximum power rating of 3A (5V) and a max of 80 LEDs with a length up to 2 meters.
The RGB LED header supports standard 5050 RGB LED strips (12V/G/R/B) with a maximum power rating of 3A (12V) and lengths within 2 meters.
A SOLID M.2-SOLUTION PERFORMER
Dual M.2 for SSDs That Supports Type 22110 M.2
The B450 houses two of the world's fastest M.2 slots. One slot delivers up to PCIe Gen3 x4 32Gbps transfer speed, the other one supports PCIe Gen3 x2 & SATA3 6Gbps mode.
M.2 Armor
Good M.2 SSD protection is important for longevity and stability. ASRock has provided a complete M.2 armor solution on the B450 platform that makes SSDs run perfectly at low temperatures.
Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear I/O to support next-generation USB 3.1 Gen2 devices while delivering up to 10 Gbps data-transfer rates.
USB 3.1 Gen2 doubles the data transfer rate!
USB 3.1 Gen2 Type-C doubles the charge speed!
ULTRA USB POWER
ULTRA STABLE POWER
The +5V voltage on these motherboards is transferred from the +12V, supplying enough current to USB devices without dropping voltage directly from the PSU.
ANTISTATIC SHIELD
Protect your mouse and keyboard against static electricity. This especially lowers the chances of USB mouse lag or stuttering.
PURE AUDIO QUALITY
The USB speaker is best connected via Ultra USB Power ports to execute a pure current while offering high audio quality without distortion.
2 oz Copper
This motherboard has been made with 2 ounces of copper inner layers. The copper materials for PCB layers were carefully selected to deliver lower temperatures and higher energy efficiency for overclocking.
PREMIUM 60A POWER CHOKE
ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
