Intel

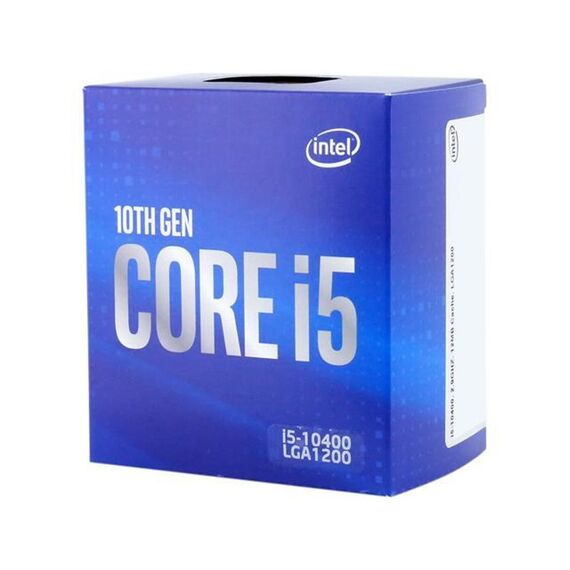

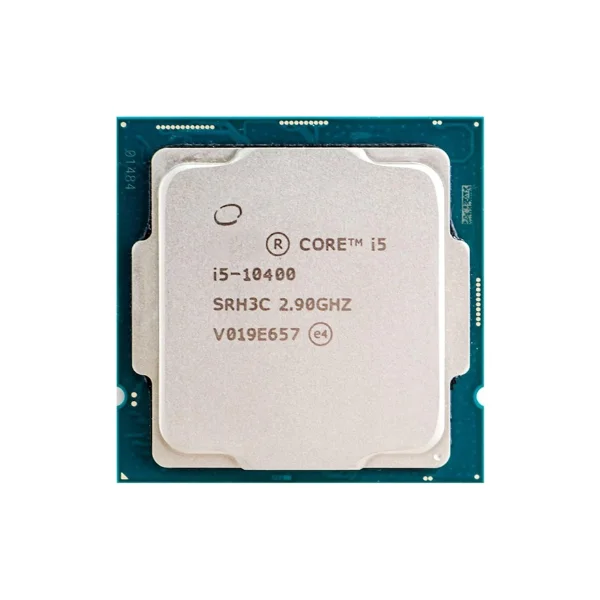

Core I5-10400 Tray

Processor

Essentials:

Product Collection10th Generation Intel® Core™ i5 Processor

Vertical Segment Desktop

Processor Numberi5-10400

Status Launched

Launch DateQ2'20

Lithography14 nm

Use Conditions PC/Client/Tablet

CPU Specifications

# of Cores6

# of Threads12

Processor Base Frequency2.90 GHz

Max Turbo Frequency4.30 GHz

Cache12 MB Intel® Smart Cache

Bus Speed8 GT/s

Intel® Turbo Boost Technology 2.0 Frequency‡4.30 GHz

Supplemental Information

Embedded Options AvailableNo

DatasheetView now

Memory Specifications

Max Memory Size (dependent on memory type)128 GB

Memory TypesDDR4-2666

Max # of Memory Channels2

Max Memory Bandwidth41.6 GB/s

ECC Memory Supported ‡No

Processor Graphics

Processor Graphics ‡Intel® UHD Graphics 630

Graphics Base Frequency350 MHz

Graphics Max Dynamic Frequency1.10 GHz

Graphics Video Max Memory64 GB

4K SupportYes, at 60Hz

Max Resolution (HDMI)‡4096 x 2160@30Hz

Max Resolution (DP)‡4096 x 2304@60Hz

Max Resolution (eDP - Integrated Flat Panel)‡4096 x 2304@60Hz

DirectX* Support12

OpenGL* Support4.5

Intel® Quick Sync VideoYes

Intel® InTru™ 3D TechnologyYes

Intel® Clear Video HD TechnologyYes

Intel® Clear Video TechnologyYes

# of Displays Supported ‡3

Device ID0x9BC8 / 0x9BC5

Expansion Options

Scalability1S Only

PCI Express Revision3.0

PCI Express Configurations ‡Up to 1x16, 2x8, 1x8+2x4

Max # of PCI Express Lanes16

Package Specifications

Sockets SupportedFCLGA1200

Max CPU Configuration1

TJUNCTION100°C

Package Size37.5mm x 37.5mm

Advanced Technologies

Intel® Optane™ Memory Supported ‡Yes

Intel® Thermal Velocity BoostNo

Intel® Turbo Boost Max Technology 3.0 ‡No

Intel® Turbo Boost Technology ‡2.0

Intel vPro® Platform Eligibility ‡No

Intel® Hyper-Threading Technology ‡Yes

Intel® Virtualization Technology (VT-x) ‡Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes

Intel® VT-x with Extended Page Tables (EPT) ‡Yes

Intel® Transactional Synchronization ExtensionsNo

Intel® 64 ‡Yes

Idle StatesYes

Enhanced Intel SpeedStep® TechnologyYes

Intel® Identity Protection Technology ‡Yes

Intel® Stable Image Platform Program (SIPP)No

Security & Reliability

Intel® AES New InstructionsYes

Secure KeyYes

Intel® Software Guard Extensions (Intel® SGX)Yes with Intel® ME

Intel® OS GuardYes

Intel® Trusted Execution Technology ‡No

Execute Disable Bit ‡Yes

Intel® Boot Guard Yes
