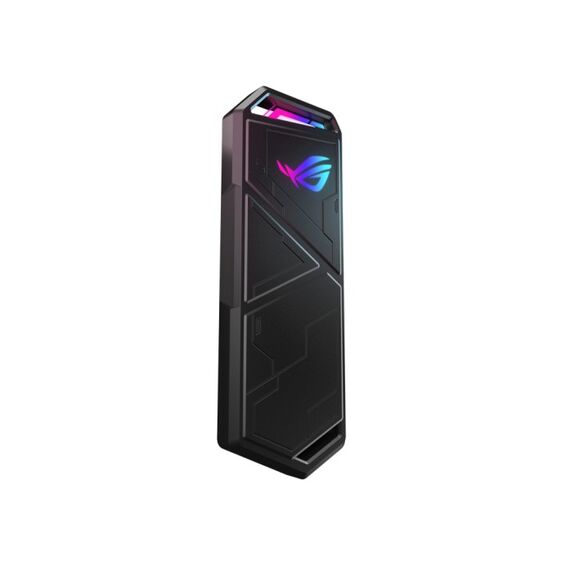

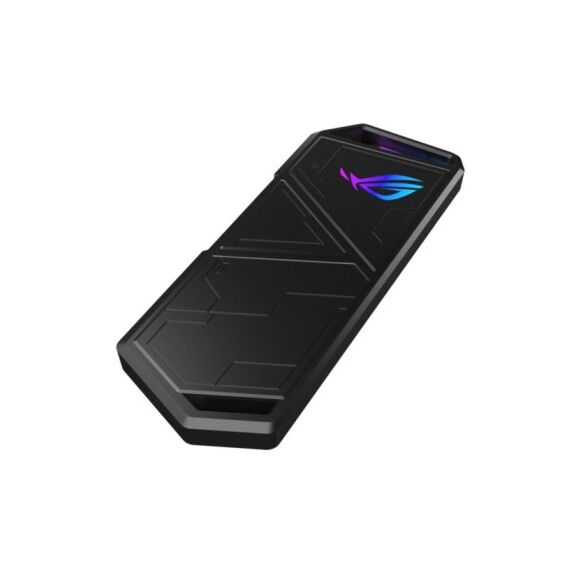

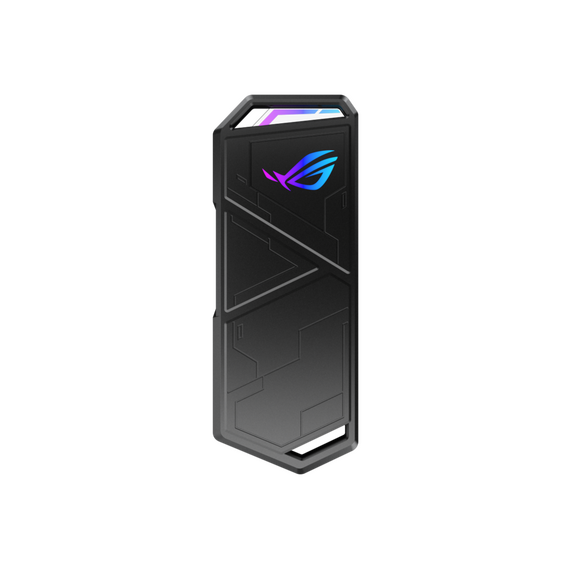

Asus Rog Strix Arion Lite ESD-S1CL/BLK/G/AS SSD Housing

Asus, Rog Strix Arion Lite, ESD-S1CL/BLK/G/AS, SSD Housing,

ROG Strix Arion Lite M.2 NVMe SSD Enclosure—USB3.2 GEN2 Type-C (10 Gbps), USB-C to C Cable, Screwdriver-Free, Thermal Pads Included, Fits PCIe 2280/2260/2242/2230 M key/B+M Key:

• USB-C 3.2 Gen 2 for speeds of up to 10 Gbps
• Supports M.2 PCIe NVM Express® SSD with 2230/2242/2260/2280 form factor
• Innovative, easy-to-use screwdriver-free installation
• Aluminum alloy case and thermal pads deliver aggressive heat dissipation
• Futuristic design features ASUS Aura Sync lighting effects.

Stay Cool, Stay Fast:

ROG Strix Arion Lite is an SSD enclosure that fits an M.2 PCIe NVM Express® SSD with a 2230/2242/2260/2280 form factor and features USB-C™ 3.2 Gen 2 connectivity to deliver data transfer speeds of up to 10 Gbps*. Its sleek aluminum alloy case features thermal pads for excellent heat dissipation and exclusive ASUS Aura Sync lighting effects that altogether make ROG Strix Arion Lite a high-performance, mobile storage solution.

Support M.2 PCIe NVM Express SSD:

Rog Strix Arion Lite fits* 2230/2242/2260/2280 M.2 PCIe NVM Express® SSD up to 2TB with M key/ B+M key ROG Strix Arion Lite does not support SATA-based B key/ B+M Key and PCIe/ACHI-based M key. ROG Strix Arion Lite currently does not support Micron P5 SSD and Realtek RTS5765DL/RTS5766DL controllers, such as but not limited to ADATA SWORDFISH and ADATA XPG SPECTRIX S20G.

Aggressive heat dissipation:

An aluminum alloy case with included thermal pads reduce operating temperatures drastically, enabling your SSD to maintain high transfer speeds and extending its longevity.

Innovative screwdriver-free installation:

ROG Strix Arion Lite features a pin-design and thumbscrew-installation system that makes it easy to mount your SSD into the enclosure. No screwdriver is required.

Innovative screwdriver-free installation:

ROG Strix Arion Lite features a pin-design and thumbscrew-installation system that makes it easy to mount your SSD into the enclosure. No screwdriver is required.

ASUS Aura Sync lighting effects:

With exclusive ASUS Aura Sync lighting technology, ROG Strix Arion Lite provides ambient lighting that perfectly complements your gaming rig for true expression of your individuality

Specification:

ROG Strix Arion Lite

Color

Black

Interface

USB3.2 Gen 2X1

Speed

10Gbps

Capacity

0TB

OS Compatility

Windows 7 Windows 8.1 Windows 10 Mac OS Catalina or later Android devices supported OTG function

SSD Compatility

M.2 PCI Express 2280 M.2 PCI Express 2260 M.2 PCI Express 2242 M.2 PCI Express 2230 Micron P5 SSD is currently not supported on ROG Strix Arion

Aura System Requirement

Windows 8 / 8.1 64bit Windows 10 64bit

Dimension

124.5 x 47.7mm x 10.9 mm (L/W/H)

Weight

98g

Temperature

Operating: 0 ℃(32 ℉)-40 ℃(104 ℉) Stroage: -20 ℃(-4 ℉)-60 ℃(140 ℉)

Humidity

Operating: 15%~80>#/span### Storage: 10%~90>#/span###

Voltage

5V

Package Content

Quick Installation Guide USB-C to USB-C cable Pin Ejector  User manual  Warranty Card
