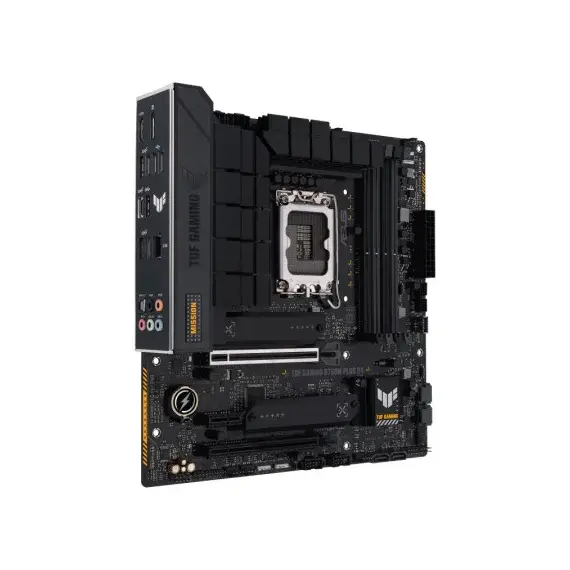

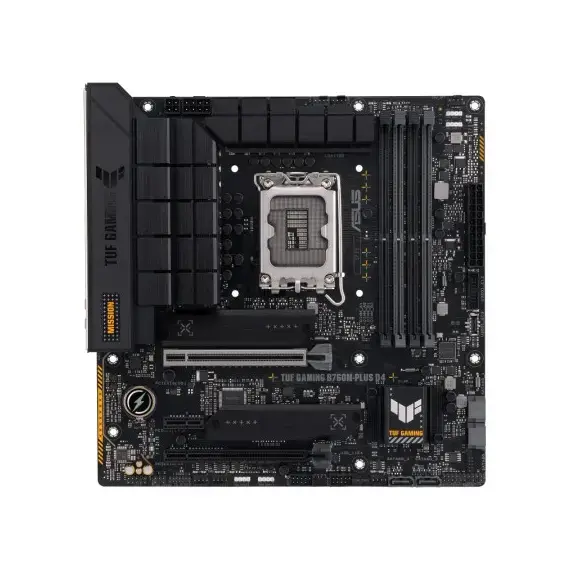

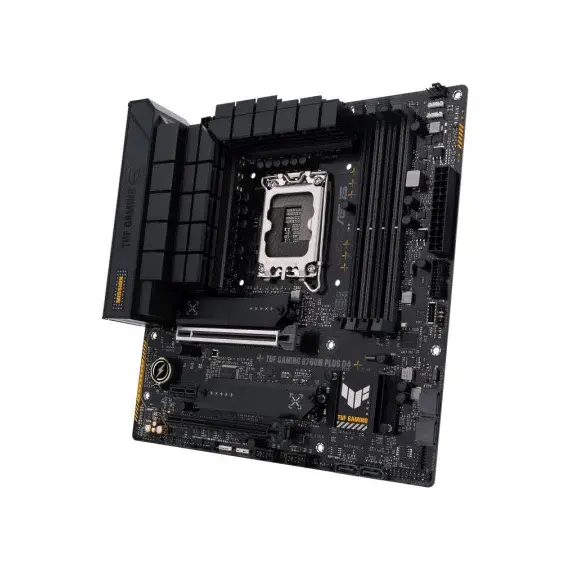

Asus TUF Gaming B760M-PLUS D4

Motherboard

Asus TUF Gaming B760M-PLUS D4 integrates all the key features of the latest Intel® processors, delivering game-ready performance with exceptional durability. It is built using military-grade components, an enhanced power solution, and a comprehensive cooling system, ensuring consistent and reliable performance for extended gaming sessions. The TUF GAMING series motherboards are subjected to rigorous endurance tests to guarantee their ability to withstand harsh conditions where other models may falter. The design features an embossed nameplate and geometric patterns, symbolizing the reliability and stability that are synonymous with the TUF GAMING series.

All-Around Energy Efficiency:

Efficient Energy Usage The Power Saving feature allows users to optimize energy consumption with ease. It offers options like limiting CPU power, turning off Aura lighting, and adjusting the fan profile to power-saving modes, all of which help maximize energy savings without compromising performance.

ROCK-SOLID PERFORMANCE:

The Asus TUF Gaming B760M-PLUS D4 is designed for rock-solid performance, featuring enhanced power delivery and advanced cooling options to support the latest Intel CPUs. It also offers compatibility with DDR4 memory and PCIe 4.0 storage, making it an ideal foundation for your next Intel-powered gaming setup.

DrMOS Power Stages:

The Asus TUF Gaming B760M-PLUS D4 is equipped with DrMOS power stages, including 12+1 power stages that combine high-side and low-side MOSFETs and drivers into a single package. This ensures efficient power delivery and stable performance for all compatible Intel processors.

Six-Layer PCB Design:

The multi-layered printed circuit board (PCB) design efficiently dissipates heat around the voltage regulators, enhancing system stability and providing the CPU with more headroom for overclocking.

8+4 Pin ProCool Power Connectors:

ASUS ProCool connectors are engineered to strict specifications, ensuring full contact with power supply cables. This lower impedance reduces the risk of hotspots and connector failure, compared to standard power inputs.

Digi+ VRM:

The integrated Digi+ voltage-regulator module (VRM) is among the best in the industry, delivering ultra-smooth and clean power to the CPU at all times.

DRAM Overclocking Performance:

Improvements in trace routing provide the latest Intel processors with better access to memory bandwidth. ASUS OptiMem II technology optimizes memory signal pathways across multiple PCB layers, reducing path distance and incorporating shielding zones to minimize crosstalk.

PCIe 4.0 Support:

The two PCIe 4.0 M.2 slots support up to two 2280 devices, with data-transfer speeds of up to 64 Gbps via PCIe® 4.0, resulting in faster boot-up times and quicker application load times for OS or application drives.

Enlarged VRM Heatsink:

The enlarged VRM heatsink features an extensive surface area that covers both the VRMs and chokes, enhancing heat dissipation for improved cooling performance.

Optimized M.2 Heatsink Design:

 The optimized M.2 heatsink design ensures that all M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal temperatures for consistent performance and reliability.

Build With Confidence:

The asus motherboard Alliance is a collaboration between ASUS and trusted PC component brands, ensuring compatibility across a wide range of parts, including PC cases, power supplies, CPU coolers, and memory kits. With new partnerships and components added regularly, the TUF GAMING Alliance continues to grow stronger.

SafeSlot Core+ & SafeDIMM:

SafeSlot Core+ features a reinforced metal sheath added to the PCIe slot to secure the card firmly in place. Given that PCIe 5.0 is twice as fast as PCIe 4.0, ASUS has enhanced the SMT manufacturing process to accommodate the faster SafeSlot, delivering top-tier data speeds. Additionally, ASUS SafeDIMM sheaths support and protect memory modules, allowing for quick and accurate installation with confidence.

ESD Guards:

ESD Guards extend the life of components by protecting against electrostatic discharge, offering up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge. These protections far exceed the industry standards of +/- 6 kV and +/- 4 kV, respectively. Surface-mounted TVS diodes in a dual in-line package shield your PC from voltage spikes.

For additional protection, USB connectors are equipped with on-circuit ESD transient-voltage-suppression.

Stainless Steel Back I/O Panel:

asus motherboard feature a corrosion-resistant stainless steel back I/O panel, bonded with chromium oxide, extending its lifespan to three times that of traditional panels. These motherboards have passed 72-hour salt fog testing, outperforming other brands that only pass 24-hour tests.

M.2 Q-Latch:

The innovative Q-Latch system allows for easy installation or removal of an M.2 SSD without the need for any specific tools. This simple locking mechanism secures the M.2 SSD, eliminating the need for screws.

Removable Captive Screws:

Specialized M.2 slot screws help reduce the risk of dropping or losing screws during the removal of M.2 heatsinks.

Q-LED:

The on-board Q-LED troubleshooting lights provide a quick visual indicator for PC builders, confirming whether key components such as the CPU, RAM, graphics card, and storage devices are functioning properly during startup.

2.5 Gb Ethernet:

The 2.5 Gb on-board Ethernet boosts your LAN connection, offering up to 2.5X faster bandwidth. With your existing LAN cable, you can enjoy smoother, lag-free gaming, stream high-resolution videos seamlessly, and experience quicker file transfers.

Addressable Gen 2 RGB Header:

The asus motherboard features three addressable Gen 2 RGB headers, supporting up to 500 LEDs on Gen 2 RGB devices. This empowers Aura Sync to automatically adjust lighting effects across your entire system. These new headers are also fully backward compatible with existing Aura Sync devices.
