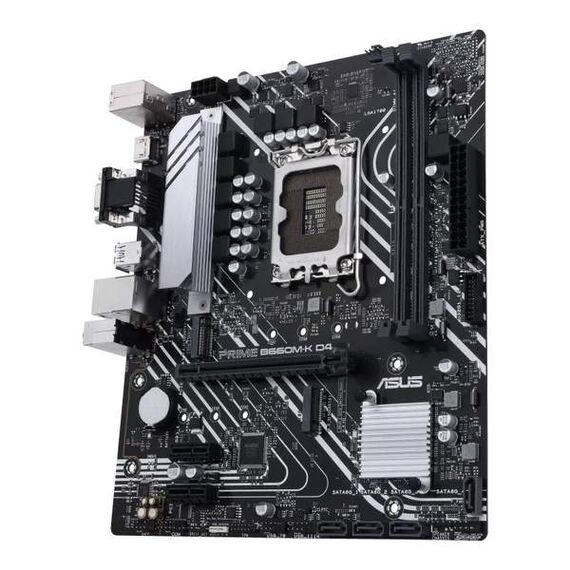

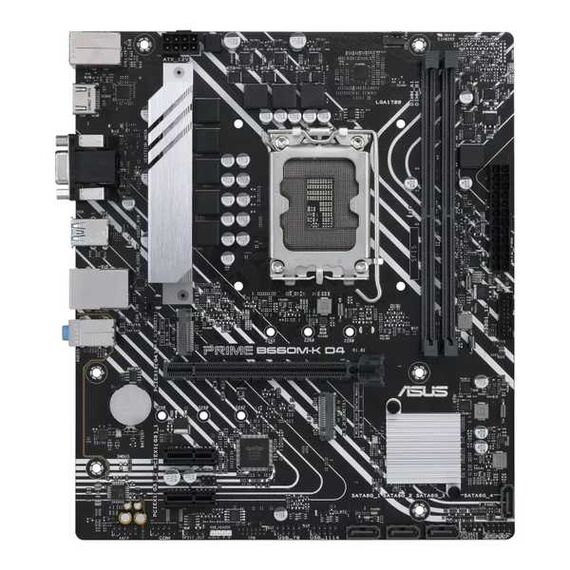

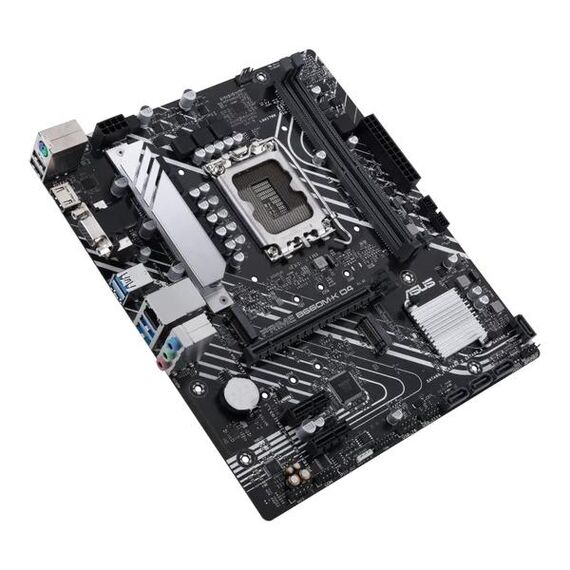

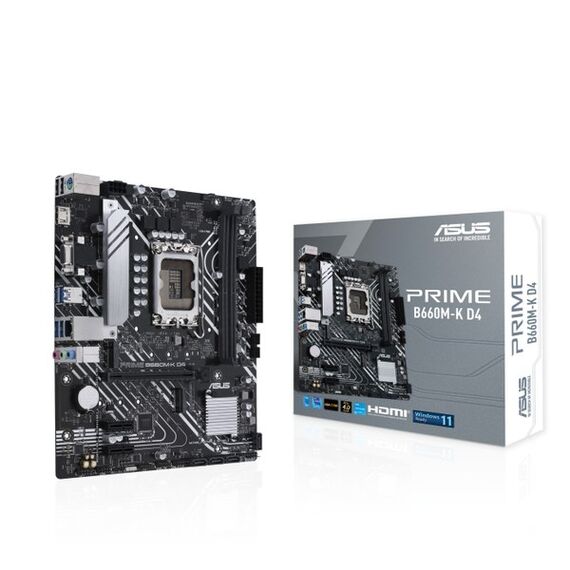

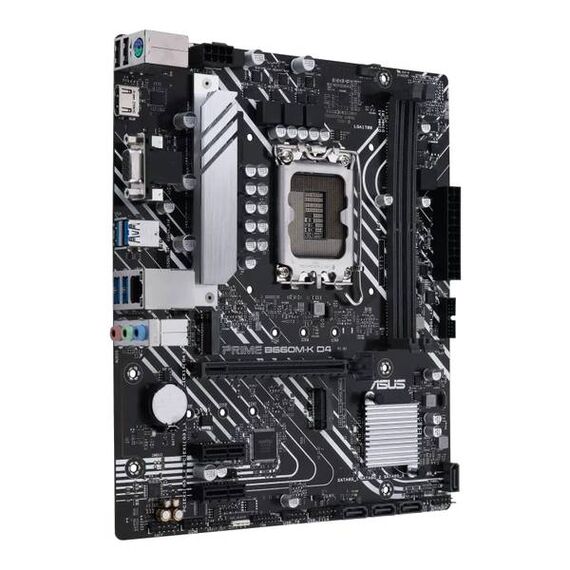

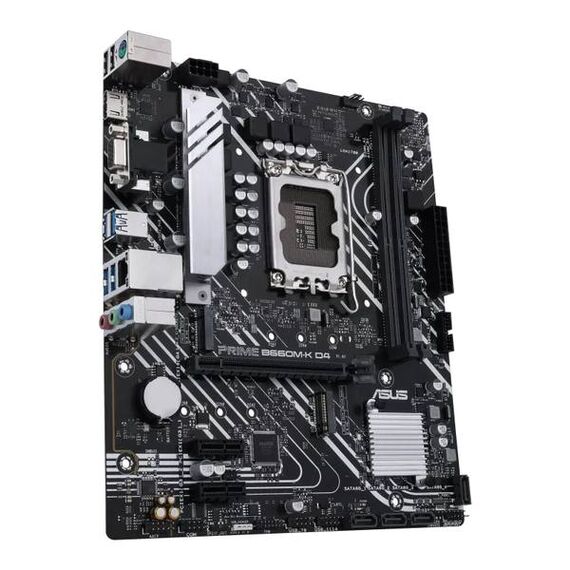

Asus Prime B660M-K D4 LGA1700 DDR4 mATX Motherboard

Asus Prime B660M-K D4 - Description

LGA1700 DDR4 mATX Motherboard

The ASUS Prime B660M-K D4 is a micro-ATX motherboard built for 13th and 12th Gen Intel® processors, featuring the Intel® B660 chipset and LGA 1700 socket. It delivers stable performance with an enhanced power design that includes an 8-pin ProCool connector, alloy chokes, and durable capacitors. Cooling is handled by VRM and PCH heatsinks, hybrid fan headers, and Fan Xpert control. For fast connectivity, it offers PCIe® 4.0 support, two M.2 slots, front USB 3.2 Gen 1, HDMI® and D-Sub display outputs, Realtek 1Gb Ethernet, and ASUS Lighting Control.

Asus Prime Motherboard:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B660M-K D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

FLEXIBILITY:

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B660 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

All-Around Energy Efficiency:

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible Air- and Liquid-Cooling Controls:

ASUS Fan Xpert software provides comprehensive control over fan. There’s an Extreme Quiet mode that reduces fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fan can also be controlled via the UEFI BIOS.

Precise Digital Power Control:

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS:

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers:

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup:

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

COOLING:

Prime B660 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pad:

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design:

Prime B660 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.

Multiple Temperature Sources:

Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE:

Prime B660 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS B660 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Power Design:

Stable power is essential to extract every last bit of performance out of 13th & 12th Generation Intel processors. Prime B660M-K D4 is geared to cater to the demands of these high-core-count CPUs.

ProCool Connectors:

Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors

6+1+1 Power Stages:

A VRM with 6+1+1 Power Stages delivers the power and efficiency that the latest Intel processors demand.

DDR4 5333(OC):

Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

Two M.2 slots (up to 64 Gbps):

Prime B660M-K D4 offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.

PCIe® 4.0 Slot:

Prime B660M-K D4 is designed specifically for 13th & 12th Generation Intel® CoreTM CPUs and offer PCIe® 4.0 connectivity. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

CUSTOMIZATION:

Prime B660 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Audio:

Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding:

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks:

Ensures minimal crosstalk between audio paths.

Premium Audio Capacitors:

Premium parts provide an immersive sound signature, with exceptional fidelity.

Lighting Control:

Brighten Up Your Build:

With 5050 RGB strips connected to the RGB header, you can create your own stunning multicolor lighting displays with static, blinking, fading, and strobing effects.
