Cisco

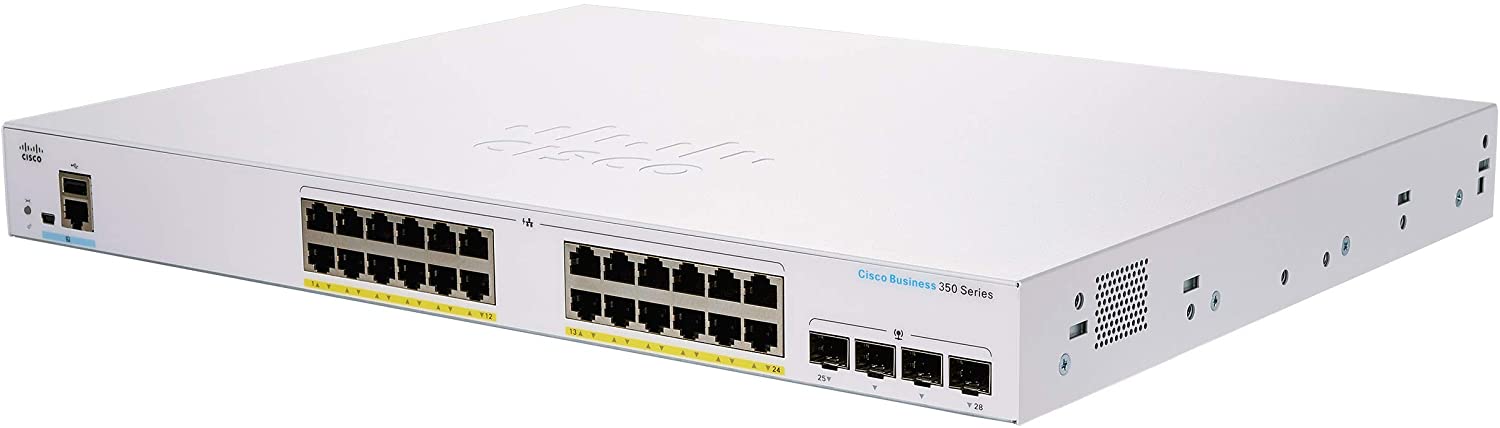

 CBS350-24FP-4G

 24-Port

 Gigabit

 PoE+

 Managed Switch

Quickly expand your business's network capacity to support powered devices such as IP security cameras, wireless access points, VoIP phones, and more with the CBS350-24FP-4G 24-Port Gigabit PoE+ Compliant Managed Switch with SFP. This managed rackmount switch features 24 PoE+ compliant Gigabit Ethernet ports with a 370W budget to operate compatible devices. There are also four Gigabit SFP ports available for high-speed fiber connections. Its extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight groups of 16 ports for multi-Gig connections to compatible devices. Its 56 Gb/s switching capacity and 41.66 Mpps forwarding rate help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS350-24FP-4G and its connected devices. Its single-fan cooling design produces about 34.8 dB of noise to minimize disruptions to your environment.

Performance:

The CBS350-24FP-4G is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 56 Gb/s switching capacity and 41.66 Mpps forwarding rate.

Power over Ethernet:

The 24 PoE+ ports support up to 30W of power each, with a total budget of 370W to operate advanced surveillance cameras, videophones, thin client devices, and more.

Extensive Security:

Support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
Advanced defense mechanisms, such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.

IPv6 Support:

The Cisco CBS350-24FP-4G switch supports allows you to evolve your network using the IPv6 standard while remaining compatible the previous-generation IPv4 networks.

Layer 3 Static Routing:

Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch's internal routing and dedicate your router to external traffic and security to help your network run efficiently.

True Stacking:

Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.

Compact Design:

With a sleek and compact 1 RU design, the CBS350-24FP-4G can fit into wiring closets and other installations within retail stores, offices, and other businesses.

Specifications:

Product Name CBS350-24FP-4G-NA Managed 24-Port GE, Full PoE, 4x1G SFP
Manufacturer Part Number CBS350-24FP-4G-NA
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology Gigabit Ethernet
Number of Total Expansion Slots 4
Product Family 350
Media Type Supported Optical Fiber
Twisted Pair

Total Number of Network Ports 28
PoE (RJ-45) Port Yes
Expansion Slot Type SFP (mini-GBIC)
Power Consumption 46.35 W
Power Source PoE+
AC Adapter

Layer Supported 2
Environmentally Friendly Yes
Environmental Certification WEEE
Number of SFP Slots 4
Modular Yes
Uplink Port Yes
Shared SFP Slot No
Port / Expansion Slot Details 24 x Gigabit Ethernet PoE+
4 x Gigabit Ethernet Expansion Slot

PoE Budget 370 W
Country of Origin China
Height 1.7"
Width 17.5"
Depth 13.6"
Product Series 350
Product Model CBS350-24FP-4G
Network Technology 1000Base-T
1000Base-X
