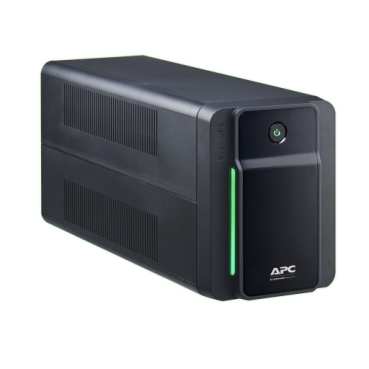

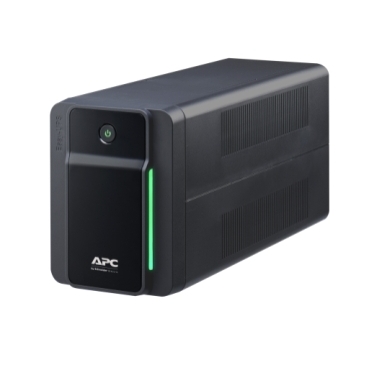

Apc BVX900LI-GR

900VA/480W 230V AVR Schuko Sockets Easy UPS

Easy UPS provides power protection during unstable power supplies, ensuring a stable and reliable connection at the most important moments.

Availability:

Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.

Advanced Safety Features: Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Features:

Boost Automatic Voltage Regulation (AVR): Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

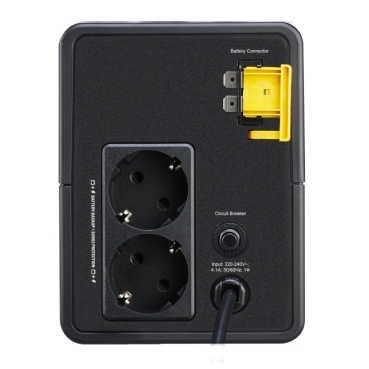

Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles.

Cold-start capable: Provides temporary battery power when the utility power is out.

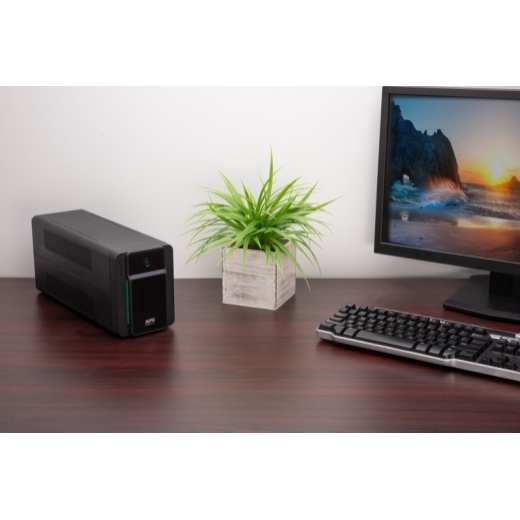

Sleek design: Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Safety:

Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability:

Audible alarms: Provides notification of changing utility power and UPS power conditions

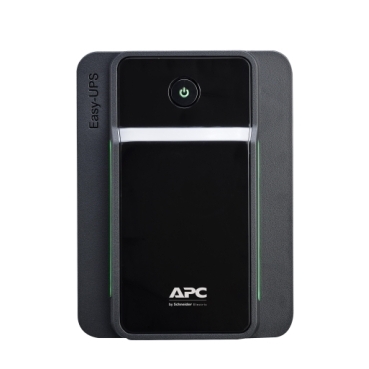

LED Indicators: Provide easy-to-read status of the unit and utility power conditions.

Protection:

Battery and surge protected outlets: Back up and protect your hardware and data during power outages, surges and spikes .

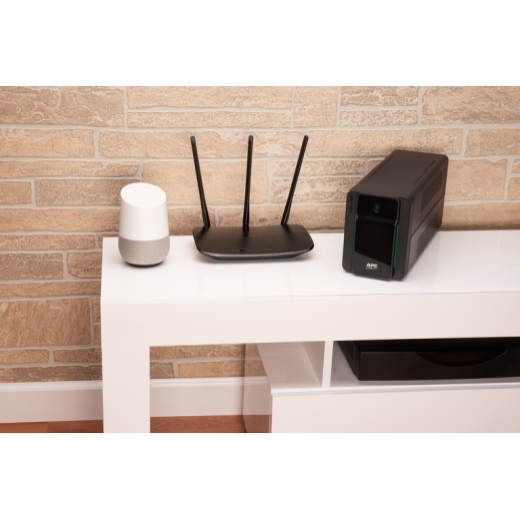

Battery backup and surge protection: Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

Technical Specifications:

Output:

Max Configurable Power (Watts)

480 Watts / 900VA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical : 10 ms maximum

Input:

Input frequency

50/60 Hz +/- 5 Hz Auto-sensing

Input voltage range for main operations

140 - 300 (230 V) ACV

Number of Power Cords

1

Input Power Factor at Full Load

0.53

Batteries & Runtime:

Battery type

Lead-acid battery

Typical recharge time

8hour(s)

Nominal Battery Voltage

12 V

Replacement Battery

RBC17

Expected Battery Life (years)

2 - 3

Battery Volt-Amp-Hour Capacity

108

Communications & Management:

Control panel

LED Status display with on line : on battery

Audible Alarm

Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering:

Surge energy rating

273Joules

Physical:

Maximum Height

160MM, 16.0CM

Maximum Width

120MM, 12.0CM

Maximum Depth

355MM, 35.5CM

Net Weight

6.0KG

Shipping weight

6.5KG

Shipping Height

250MM, 25.0CM

Shipping Width

197MM, 19.7CM

Shipping Depth

430MM, 43.0CM

Color

Black

SCC Codes

10731304404597

Environmental:

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (Non-condensing) %

Operating Elevation

0 - 3000meters

Storage Temperature

-15 - 40 °C

Storage Relative Humidity

0 - 95 (Non-condensing) %

Storage Elevation

0 - 3000meters

Audible noise at 1 meter from surface of unit

40.0dBA

Protection Class

IP20
