ABB

11T G2 1KVA B

1000VA / 900w

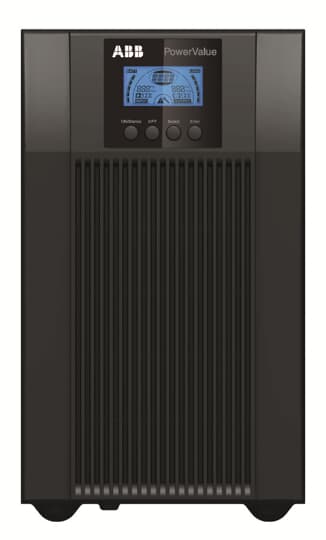

Tower Online Double Conversion UPS

ABB's Power Value 11T G2 is a dual circuit breaker input/output uninterruptible power supply (UPS) that provides clean, reliable power up to 10kW per UPS for mission-critical single-phase applications. Power Value 11T G2 not only saves energy in server rooms, billboards, turnstiles, laboratory equipment, signaling systems, ATMs or vending machines, it also regulates input power to eliminate peaks, emissions, noise and harmonics To do. Power Value 11T G2 Tower minimizes power loss and saves costs with dual switching efficiency up to 95% (up to 98% in eco mode) with voltage and frequency independent (VFI) topology. Two or three modules can be connected in parallel to increase power up to 30kW or to provide redundancy. Power Value 11T G2 is easy to install and maintain, inexpensive to operate, with the smallest UPS footprint on the market, very tight output voltage regulation, stable, stable and transient-free pure sine Provides wave AC power. All units can be equipped with up to 4 External Battery Modules (EBM) to extend runtime to over 2 hours. Each EBM is designed for its own UPS and can be easily configured using the LCD menu.

General Information:

Extended Product Type: UPS Power Value 11T G2 1 kVA B

Product ID: 4NWP100160R0001

EAN: 7640169261886

Catalog Description: UPS Power Value 11T G2 1 kVA B

Long Description: VFI online double conversion;900W;8.5min;RS232;USB;mini COM slot

Technical:

Input Voltage (Uin): 220 V

230 V

240 V

Input Voltage Type: AC

Rated Frequency (f):Primary 50 Hz

Primary 60 Hz

Secondary 50 Hz

Secondary 60 Hz

Apparent Power Output: 1000 V·A

Rated Output Power: 900 W

Communication Interface: USB, RS-232

Number of Phases: Primary - 1

Secondary - 1

Number of Outputs:C13 Connection 4

Connection Type: IEC C14

Options Provided: Auto shut down function

Potential free switch contact

Network-management

Battery Chemical Composition: Lead-Acid

Battery Type: Portable

Battery Weight:2.5 kg

Number of Batteries:4

Environmental

RoHS Status: Following EU Directive 2011/65/EU

Environmental Information: No declaration needed

Dimensions

Product Net Width:144 mm

Product Net Height:228 mm

Product Net Depth / Length:356 mm

Product Net Weight:9.3 kg

Container Information

Package Level 1 Units:1 piece

Package Level 1 Width:240 mm

Package Level 1 Height:330 mm

Package Level 1 Depth / Length:436 mm

Package Level 1 Gross Weight:10.3 kg

Package Level 1 EAN:7640169261886

Certificates and Declarations (Document Number)

Declaration of Conformity - CCC: No certification needed

Declaration of Conformity - CE:4NWD003869

Environmental Information: No declaration needed

Instructions and Manuals:4NWD003883_EN

RoHS Information:4NWD003869
